Erwin Sattler
Troja 16 M

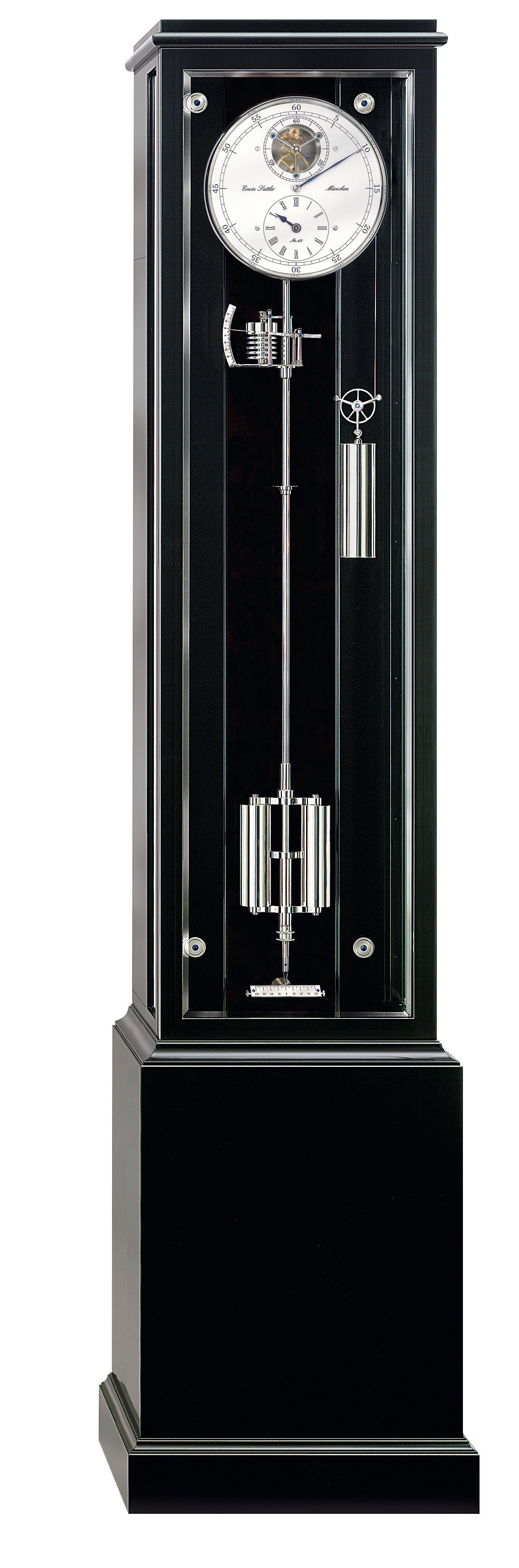

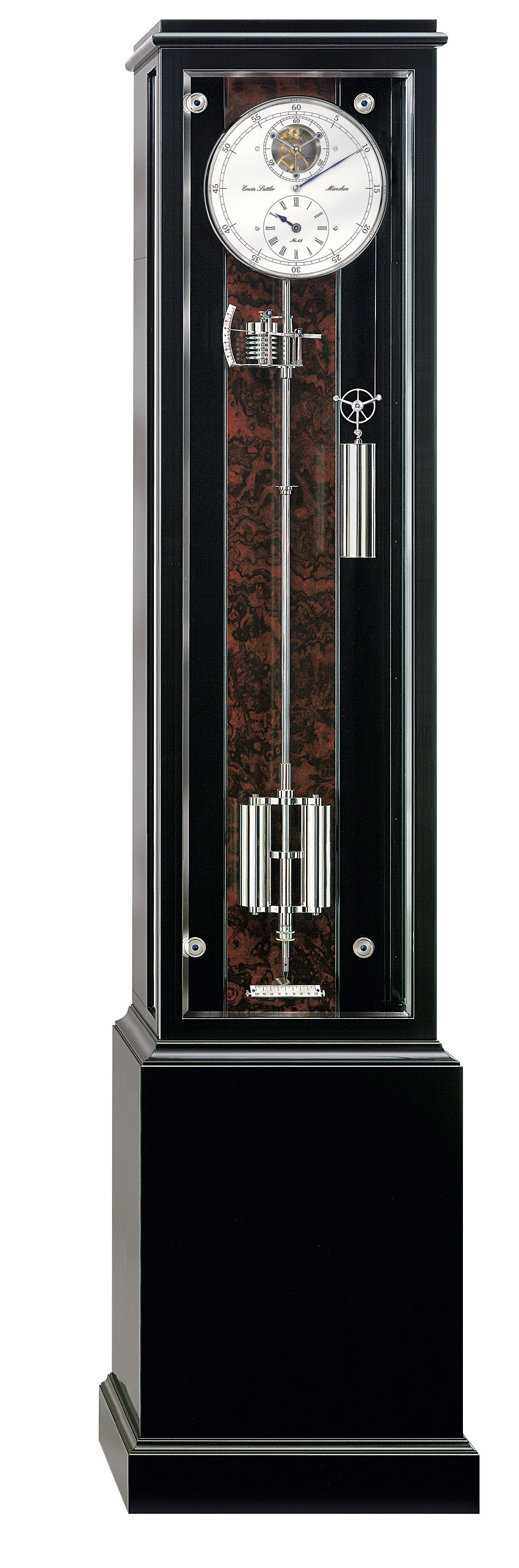

Troja 16 M
TREASURES ARE KEPT SAFE AND HIDDEN INSIDE A FASCINATING AND IMPRESSIVE PRECISION PENDULUM CLOCK
Valuable secrets – treasures are kept safe and hidden inside a fascinating and impressive precision pendulum clock. According to Greek legend, the ancient, Anatolian city of Troy (Troja) was outsmarted by Greek warriors. Hidden in the stomach of a wooden horse, they were able to get behind the fortified city walls undiscovered and, following their clever deception, conquered the city. The Troja 16 M precision pendulum clock owes its name to this historic example because its body also conceals some secrets.

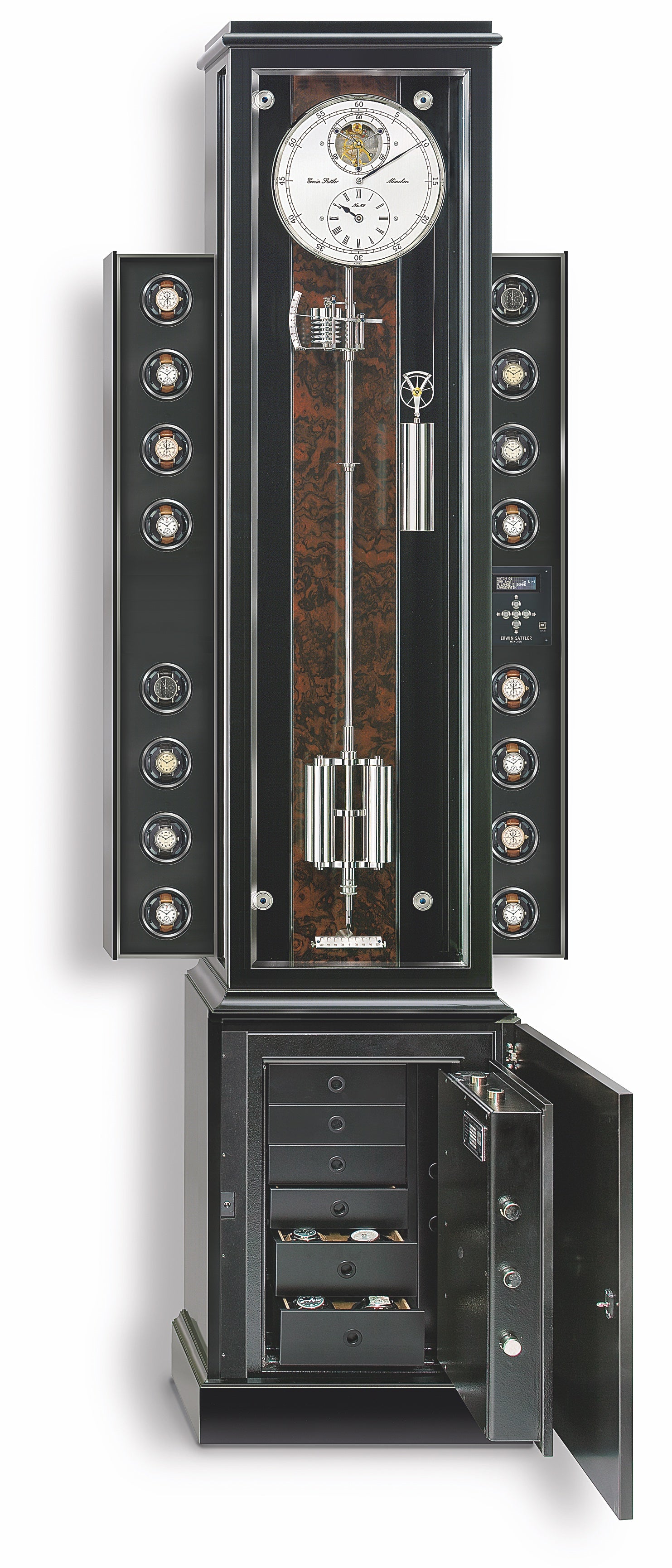

The base of the clock houses a safe which provides space for all kinds of treasures. To make full use of the depth that is gained here, 16 remote-controlled watch winders are also housed in the rear section of the case. Along with their technology partner, Beluwo®, the Erwin Sattler manufacture has developed new, large wristwatch-holders which provide enough space for larger timepieces. Each unit is equipped with its own precision motor and can be individually programmed using a Bluetooth Interface with any smartphone or tablet. The Troja 16 M is equipped with the extraordinary movement from the Classica Secunda 1995, whose silver-plated dial emphasises the value of the lovingly handcrafted, domed hands. The pendulum, at a stately length of approximately one metre, swings once every second in an elegant and calming cadence.
The Troja is available with four different movements: Troja 16 M with the movement from the Classica Secunda 1995, Troja Lunaris M with the movement from the Secunda Lunaris, Troja Sonata M with the movement from the Secunda Sonata, Troja Opus Temporis with the movement from the Opus Temporis.
HIGHLIGHTS
- Seconds pendulum clock with temperature and airpressure compensation
- Equipped with the movement from the Classica Secunda 1995
- Accuracy deviation of one to two seconds per month
- 16 extendible, individually programmable watch winders
- Hidden safe in the base
- Fingerprintreader
- Watch holder variants for different strap lengths
Case | Height: 86 inches, width: 19 inches, (watch winders extended: 26 inches), depth: 15 inches, requires wall mounting at the dial height Door with magnetic closure |
Weight | 518 lbs |
Crystals | Bevelled mineral glass |
Movement | Sattler calibre 1965 |
Power reserve | 30 days |
Drive | Weight 3,100 g with pulley with ball bearings |
Oscillator | Invar pendulum Ø 12 mm, temperature and air-pressure compensation, 5 aneroid capsules with air pressure display in mm/Hg |
Ball bearings | 5 precision ball bearings |
Jewel bearings | 11 in screwed-in chatons, 2 agate anchor pallets |

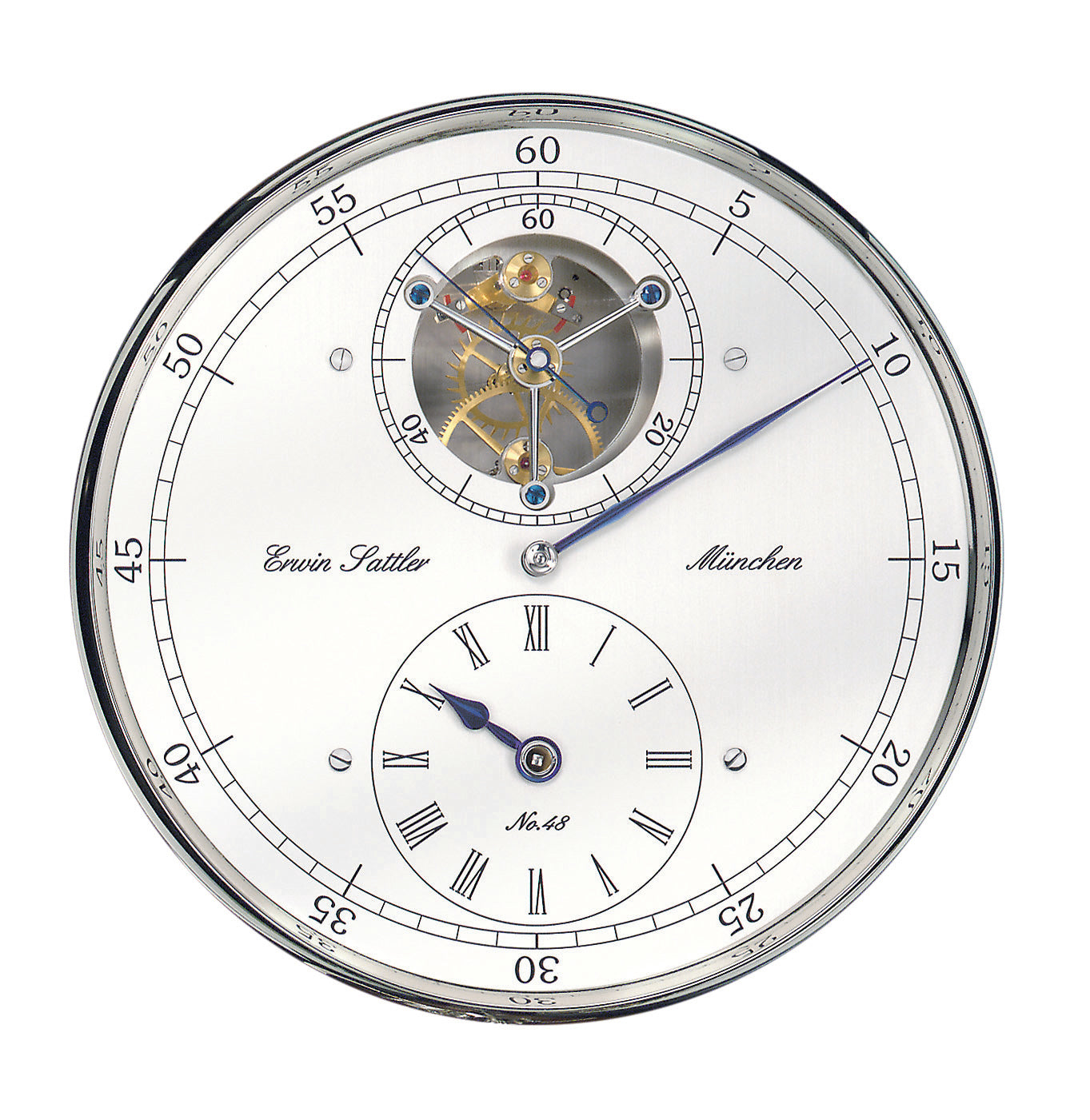

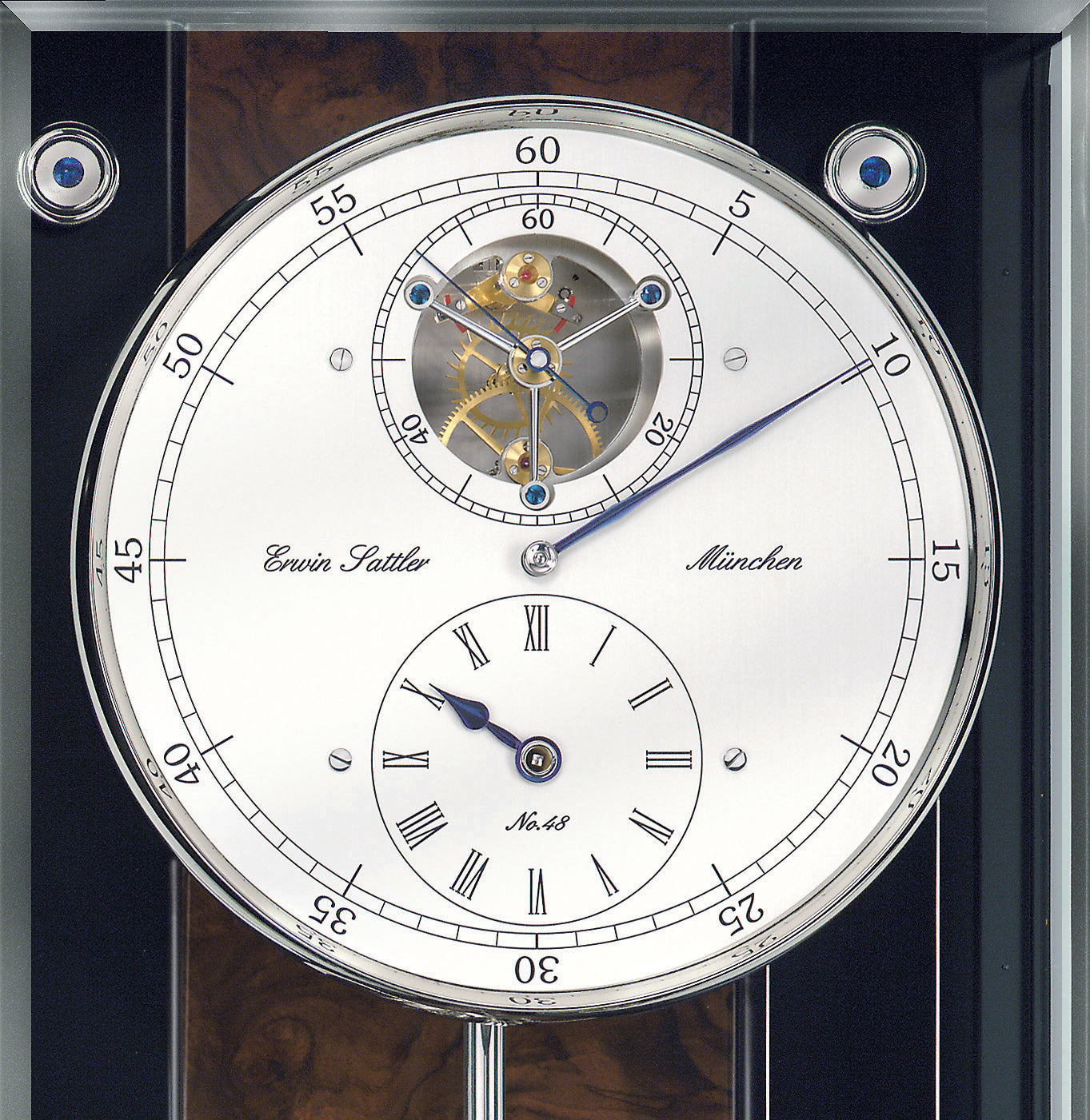

Dial | Silver-plated, cutaway in seconds dial, visible escapement (Graham) |
Base | Clock base with safe |
Winders | 16 precision watch winders, sideways extendable, individually programmable via WLAN, 16 high-power motors, 12 o’clock position |
Beat rate | 3.600/h = 60/min |
Safe | - Lock: electronic locking system - Door hinge: DIN right Dimensions: - Ext.dimension: H/B/T 24/16/13 inches - Int. dimensions: H/B/T 20/12/9 inches - Doorway: H/B 20/10 inches - Weight: aprox. 243 lbs. |
Treasures are kept safe and hidden inside a fascinating and impressive precision pendulum clock
The Troja Sonata M, a precision pendulum clock with half-hour impact mechanism and moon phase display. As an imposing grandfather clock, it can also hide the most secret treasures … In addition, the video also shows the Secunda Sonata, the counterpart as a classic precision pendulum clock for the wall.
