Erwin Sattler
Troja Lunaris M
Troja Lunaris M
TREASURES ARE KEPT SAFE AND HIDDEN INSIDE A FASCINATING AND IMPRESSIVE PRECISION PENDULUM CLOCK.
Valuable secrets – treasures are kept safe and hidden inside a fascinating and impressive precision pendulum clock. According to Greek legend, the ancient, Anatolian city of Troy (Troja) was outsmarted by Greek warriors. Hidden in the stomach of a wooden horse, they were able to get behind the fortified city walls undiscovered and, following their clever deception, conquered the city. The Troja 16 M precision pendulum clock owes its name to this historic example because its body also conceals some secrets.

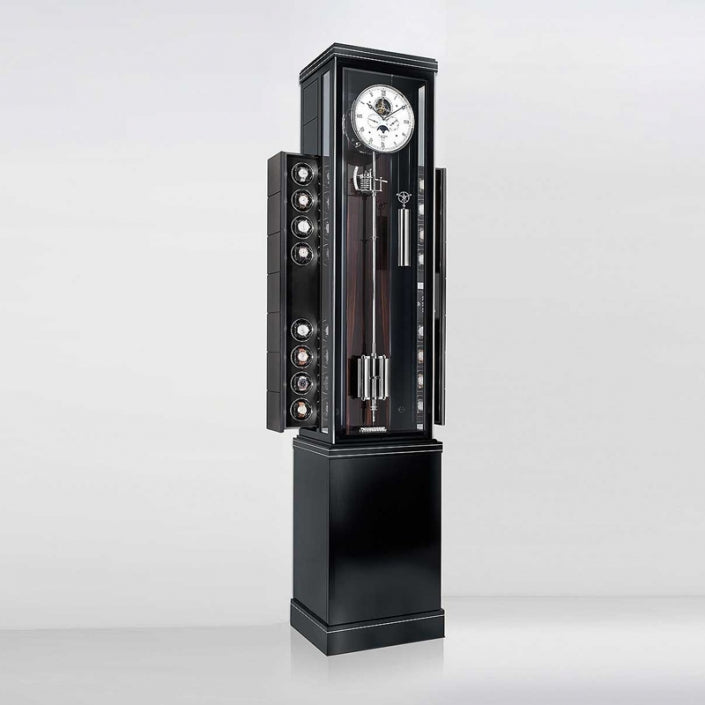

The base of the clock houses a safe which provides space for all kinds of treasures. To make full use of the depth that is gained here, 16 remote-controlled watch winders are also housed in the rear section of the case. Along with their technology partner, Beluwo®, the Erwin Sattler manufacture has developed new, large wristwatch-holders which provide enough space for larger timepieces. Each unit is equipped with its own precision motor and can be individually programmed via Bluetooth, any smartphone or tablet. The Troja Lunaris M is equipped with the extraordinary movement from the Classica Secunda 1915, whose silver-plated dial emphasises the value of the lovingly handcrafted, domed hands. The pendulum, at a stately length of approximately one metre, swings once every second in an elegant and calming cadence.

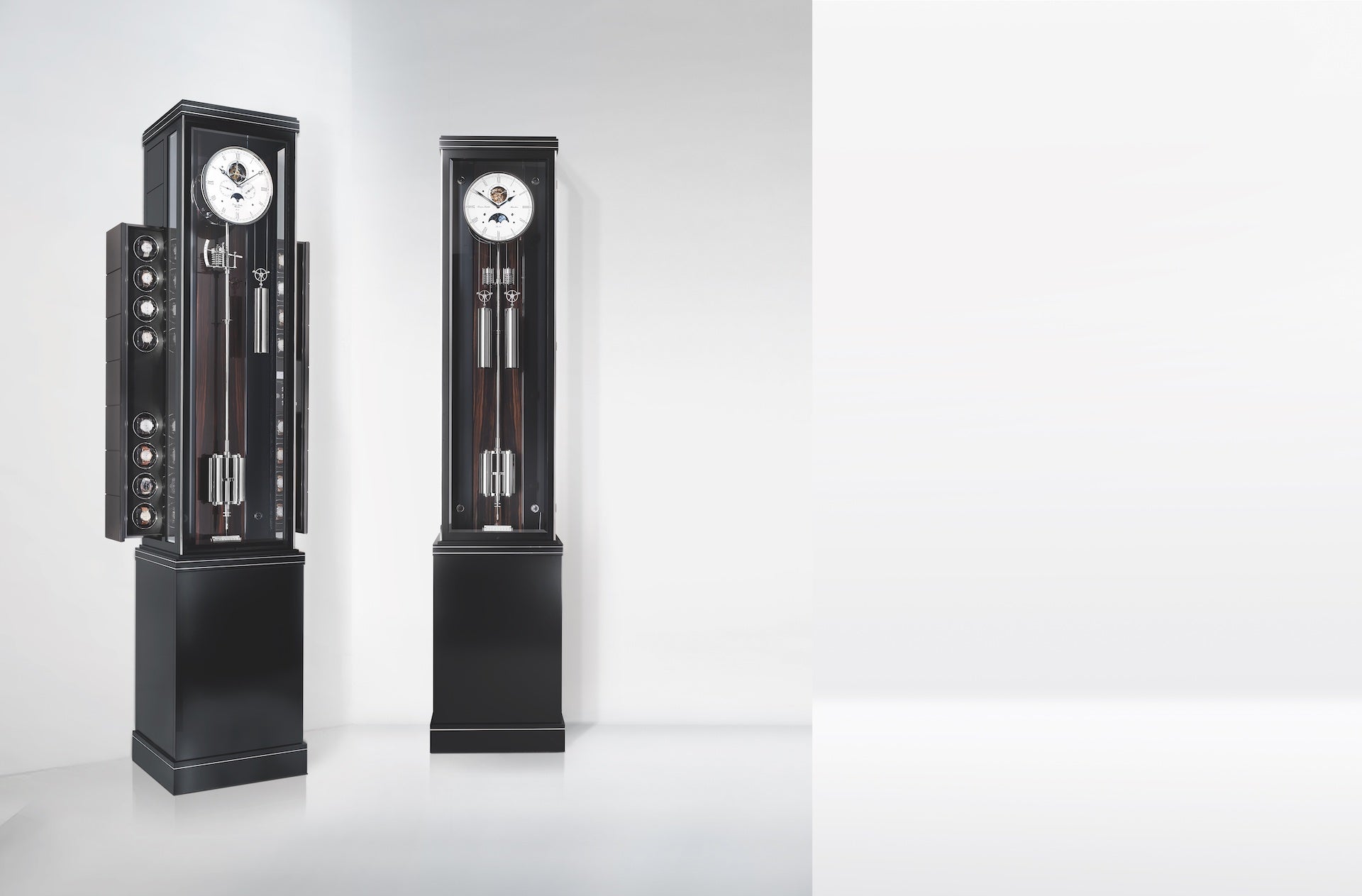

The Troja is available with four different movements: Troja 16 M with the movement from the Classica Secunda 1995, Troja Lunaris M with the movement from the Secunda Lunaris, Troja Sonata M with the movement from the Secunda Sonata, Troja Opus Temporis with the movement from the Opus Temporis.
Case | Height: ≈ 85.83 in (218 cm), Width: ≈ 18.90 in (48 cm), (watch winders extended: ≈ 27.56 in (70 cm)), Depth: ≈ 15.35 in (39 cm), Requires wall mounting at the dial height Door with magnetic closure |
Weight | ≈ 529.10 lbs (240 kg) |
Crystals | Bevelled mineral glass |
Movement | Sattler calibre 1915 |
Power reserve | 30 days |
Drive | Weight 4,500 g with pulley with ball bearings |
Oscillator | Invar pendulum Ø 12 mm, temperature and air-pressure compensation, 5 aneroid capsules with air pressure display in mm/Hg |
Ball bearings | 9 precision ball bearings |
Jewel bearings | 6 in chatons, 2 agate anchor pallets |

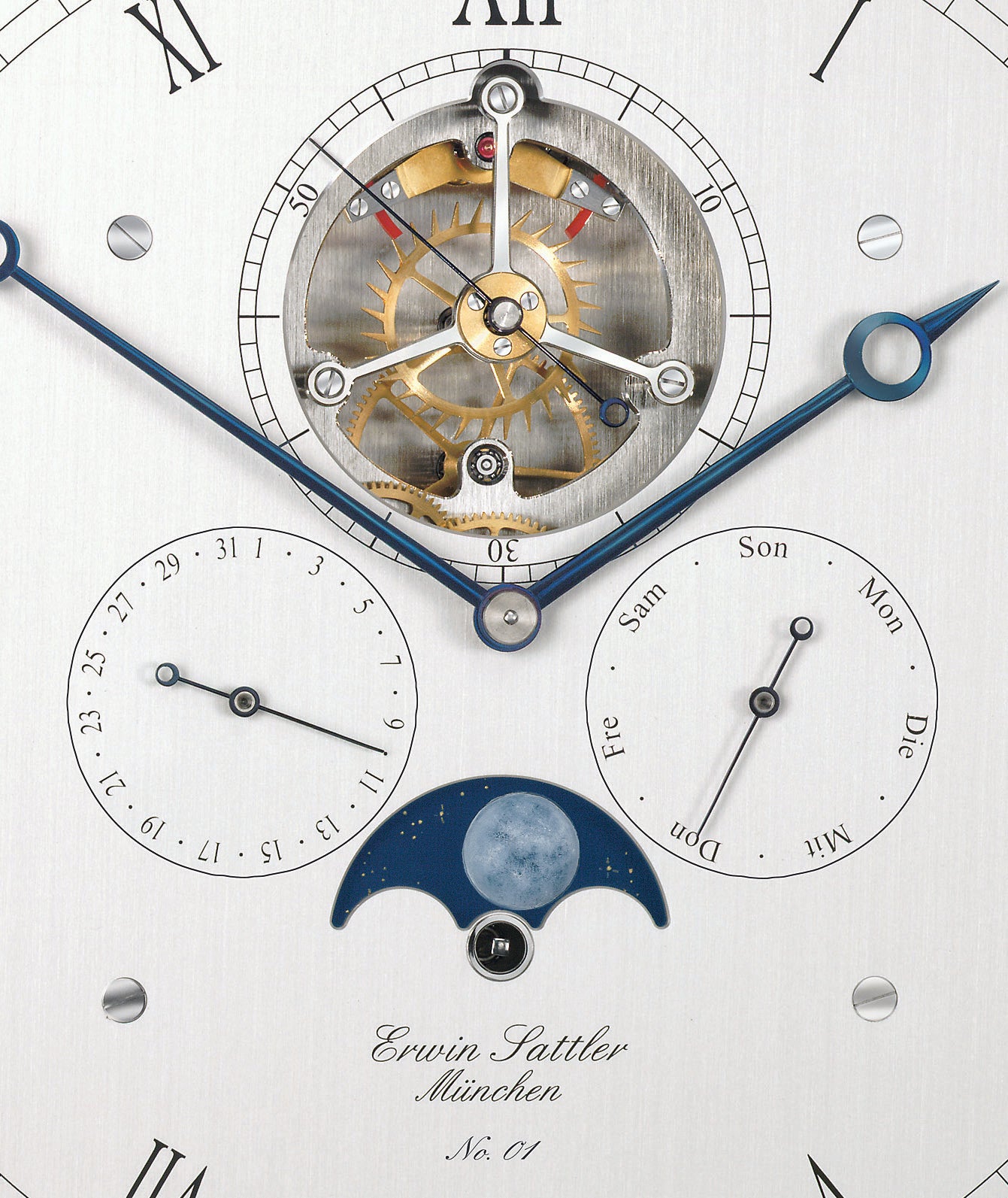

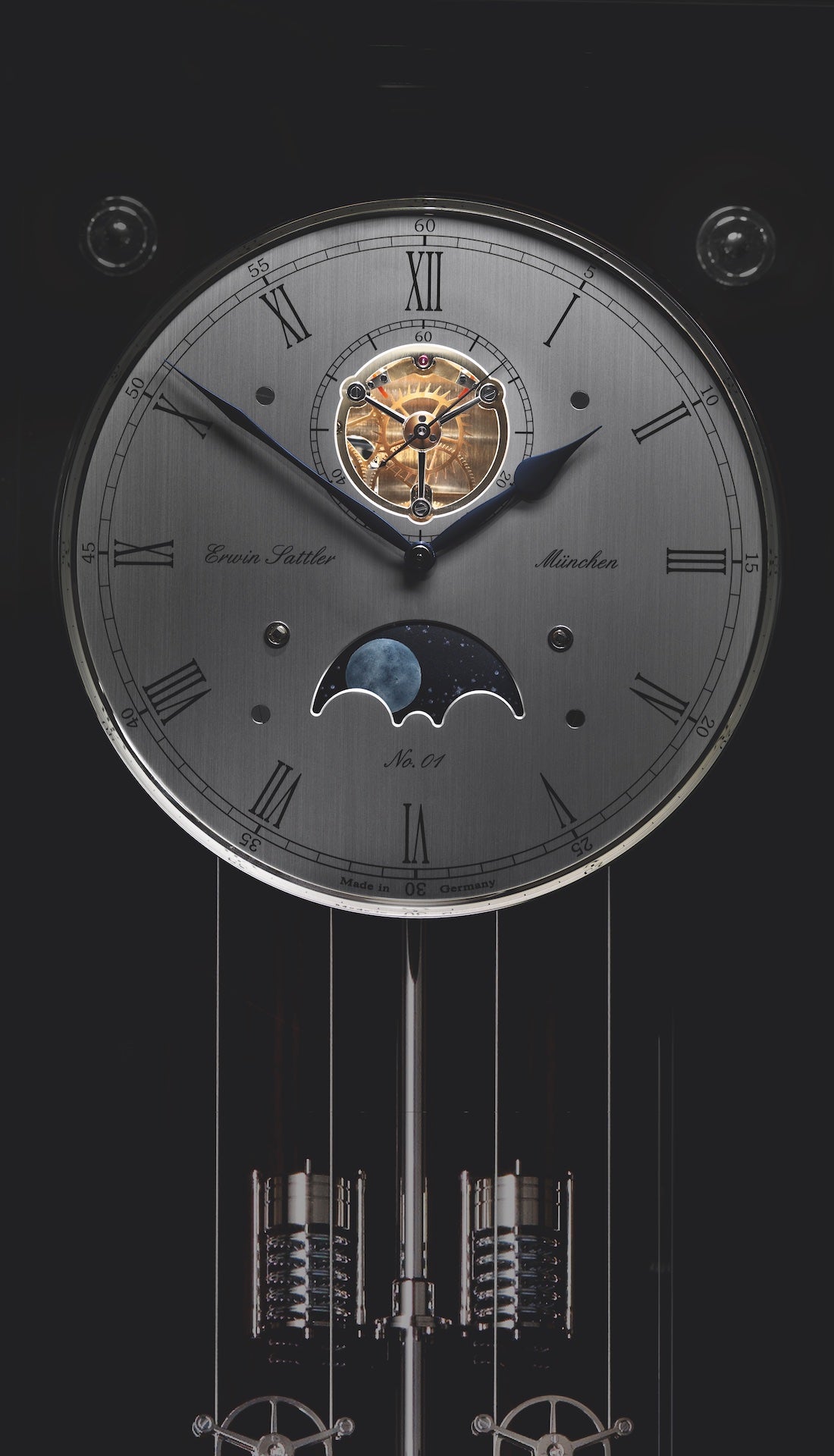

Dial | Silver-plated, hand-painted moon disc, cutaway in seconds dial, visible escapement (Graham), date and day display |
Base | Clock base with safe |

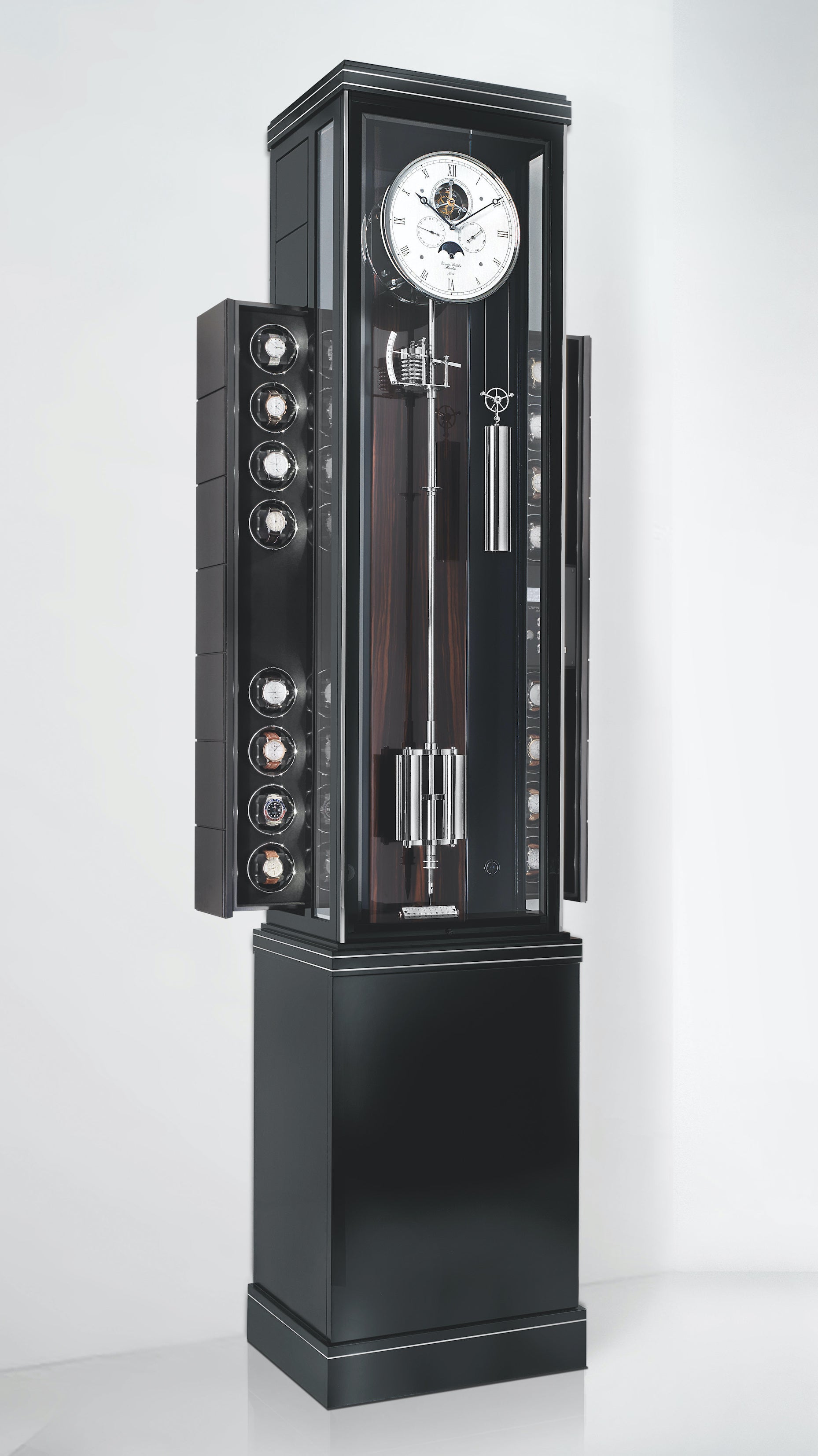

Winders | 16 precision watch winders, sideways extendable, individually programmable via WLAN, 16 high-power motors, 12 o’clock position |
Beat rate | 3.600/h = 60/min |
Thomas | Euro/VdS Category l - Lock: electronic locking system - Door hinge: DIN right Dimensions: - Ext.dimension: H/B/T 610/405/340 mm - Int. dimensions: H/B/T 504/312/221 mm - Doorway: H/B 504/265 mm - Weight: aprox. 110 kg |
Treasures are kept safe and hidden inside a fascinating and impressive precision pendulum clock
The Troja Sonata M, a precision pendulum clock with half-hour impact mechanism and moon phase display. As an imposing grandfather clock, it can also hide the most secret treasures … In addition, the video also shows the Secunda Sonata, the counterpart as a classic precision pendulum clock for the wall.
